Vertical Vibro Sifter

Helping to separate sticky flour coming from filters and bran dusters and regain to the system. The principle of work is based on an adjustable eccentric weights, housing makes a vibrating motion.

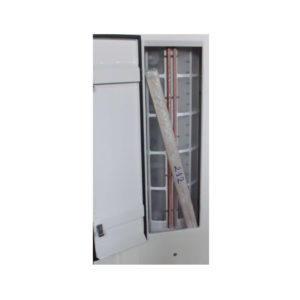

Double side doors can ease the replacement of the worn sieve cloth.

Product Enquiry Form

If you have any questions and order request about this product, please contact us.





    Product technical information

    MODEL
    FR 25

    Capacity (t/h) soft wheat

    0,7-0,9

    Capacity (t/h) hard wheat

    0,9-1,2

    Power (kW)

    4

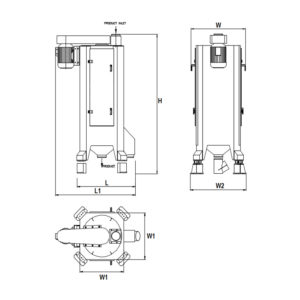

    W (mm)

    740

    W1 (mm)

    600

    W2 (mm)

    760

    H (mm)

    1800

    L (mm)

    900

    L1 (mm)

    1150

    Weight (kg)

    320

    Vertical Vibro Sifter

    Helping to separate sticky flour coming from filters and bran dusters and regain to the system. The principle of work is based on an adjustable eccentric weights, housing makes a vibrating motion.
    Double side doors can ease the replacement of the worn sieve cloth.

    Product technical information

    MODEL
    FR 25

    Capacity (t/h) soft wheat

    0,7-0,9

    Capacity (t/h) hard wheat

    0,9-1,2

    Power (kW)

    4

    W (mm)

    740

    W1 (mm)

    600

    W2 (mm)

    760

    H (mm)

    1800

    L (mm)

    900

    L1 (mm)

    1150

    Weight (kg)

    320
